Products - Orientators Two Pipe

Counselors with two output channels are designed to guide and food constantly rounded cork and synthetic stoppers for high production rates, are equipped with a hopper can be loaded from the ground leading to a good working autonomy and are able to channel plugs directly the capping turret or machine user.

The guidance system Mar.Co., compared to the traditional system, achieves high accuracy, to allow the manufacturer to ensure fault tolerance of 1 in 100,000 cap, thanks to a sophisticated control via the various operational phases' sequential use of a programmable logic controller (P.L.C.).

The compounds with one side beveled caps / plugs as in the case of sparkling wines, Champagne, Cava or synthetic "Guala"), down from a vertical channel power, are sent through a pneumatic cylinder with precision guidance in the station, which is first detection of the position (through mechanical probe) and, if necessary, the reversal of the same.

The referral system may be depending on the model tire (with cylinder) or with the innovative and patented referral system equipped with a mechanical rotating mechanically operated rotary powerful yet delicate.

The referral mechanism operates with low noise and vibration compression avoids any of the plugs, requires no adjustments to the format change, prevents the formation of dust and debris during the handling of cork stoppers and the capper can feed up to 20 meters distance allowing the storage of plugs in a dedicated environment.

Photo	Catalog	Model	Production orientation	Production without orientation	Type of referral

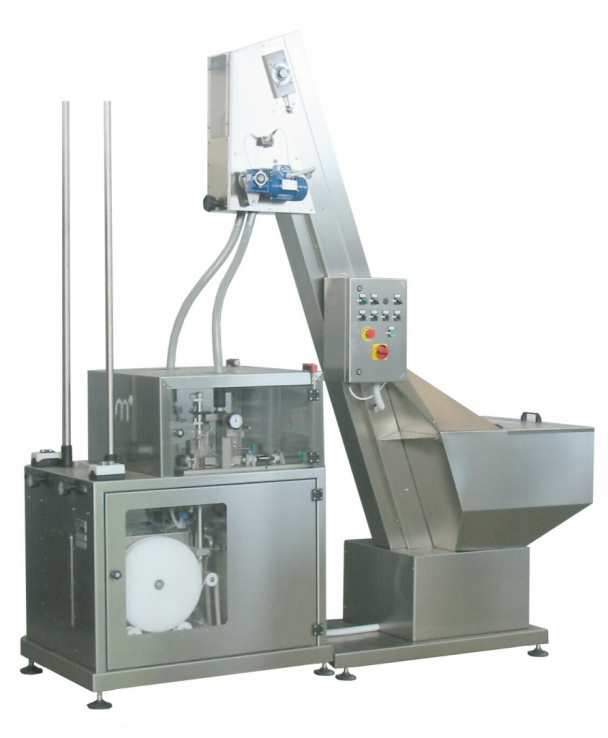

		OR VI 16-2 RM	18.000 corks/h	20.000 corks/h	Mechanic
		OR VI 24-2 RM	24.000 corks/h	30.000 corks/h	Mechanic

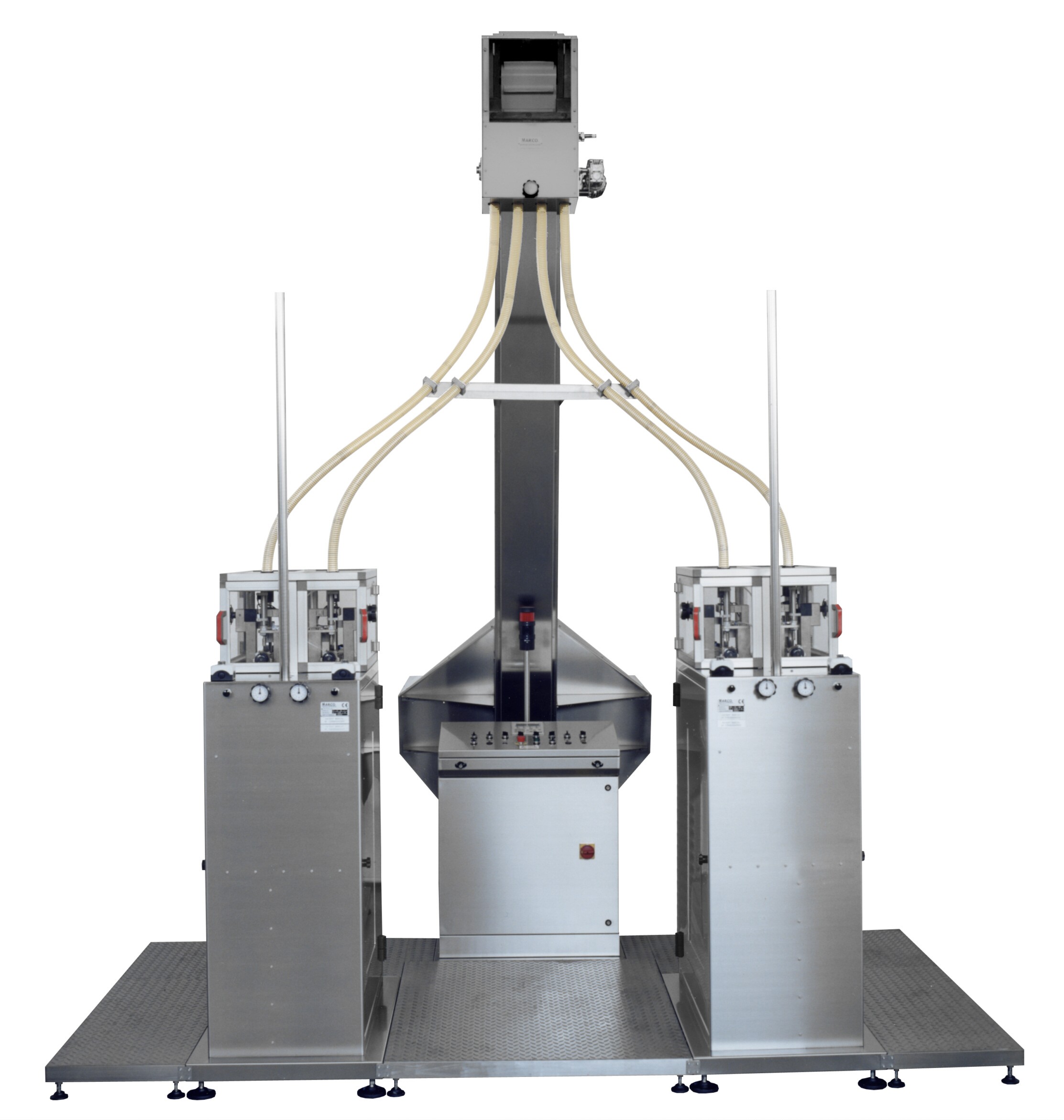

		OR VI 32-2 RM	35.000 corks/h	40.000 corks/h	Mechanic
